Chartres, Notre-Dame-de-l'Assomption
CHARTRES

Building Data for Chartres, Notre-Dame-de-l'Assomption

  •
  • Type: Cathedral
  • Affiliation:
  •
  • Region: Centre
  • Department: Eure-et-Loir
  • Coords: 48.447, 1.4878
  •
  • Surveyed: 1969, 1972-74, 1980-83, 1992-98, 2003, 2004, 2005, 2009, 2011, 2015, 2017

Map

Virtual Tour

Studies These draft studies have been written as if all carvings were by an individual whereas they can equally be analysed as template modes employed by a number of carvers. The more personal approach was necessitated by the complexity of the data. The drafts will be reconsidered after I have added the rib vault material to the database.
X

These draft studies have been written as if all carvings were by an individual whereas they can equally be analysed as template modes employed by a number of carvers. The more personal approach was necessitated by the complexity of the data. The drafts will be reconsidered after I have added the rib vault material to the database.

Under construction

Timeline and building units for Chartres, Notre-Dame-de-l'Assomption A 'building unit' is an arbitrary unit of work based on bulk billing techniques used by quantity surveyors. The unit is small enough to provide realistic figures in the small churches without becoming too huge in the large. Six units would pay for one small vaulted bay in an aisle about 3 metres square, or a small first-floor gallery. Such a bay would consist of an external wall with a small window, half of two columns about 3 meters tall, the floor and footings under them and the vault and roof overhead.
X

A 'building unit' is an arbitrary unit of work based on bulk billing techniques used by quantity surveyors. The unit is small enough to provide realistic figures in the small churches without becoming too huge in the large. Six units would pay for one small vaulted bay in an aisle about 3 metres square, or a small first-floor gallery. Such a bay would consist of an external wall with a small window, half of two columns about 3 meters tall, the floor and footings under them and the vault and roof overhead.

info

gray gray 180
1120		 650
1130		 419
1140		 205
1150		 gray 765
1190		 2306
1200		 2020
1210		 850
1220		 200
1230		 180
1240		 200
1250		 gray
1050 1120s 1130s 1140s 1150s 1190s 1200s 1210s 1220s 1230s 1240s 1250s 1250

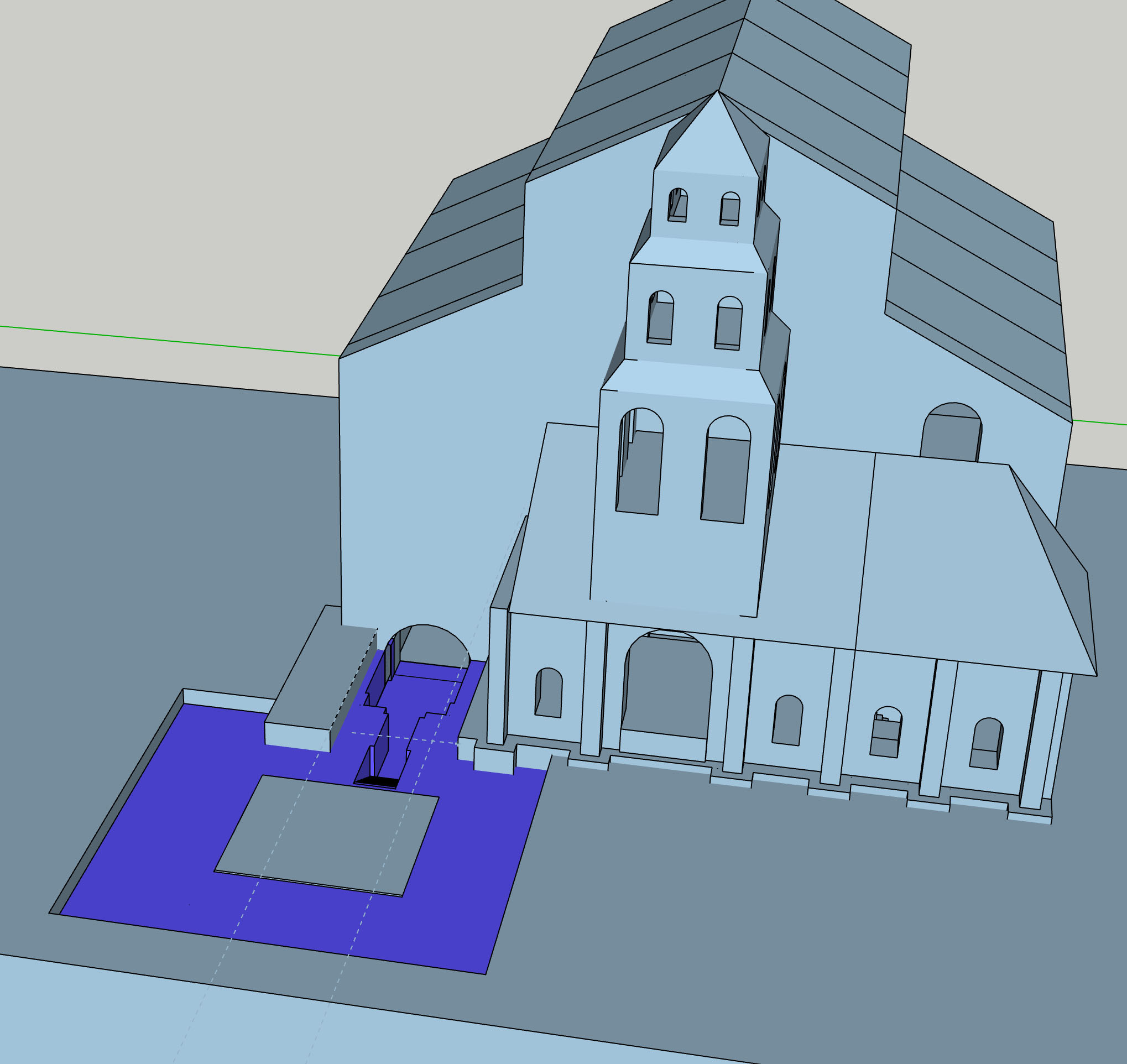

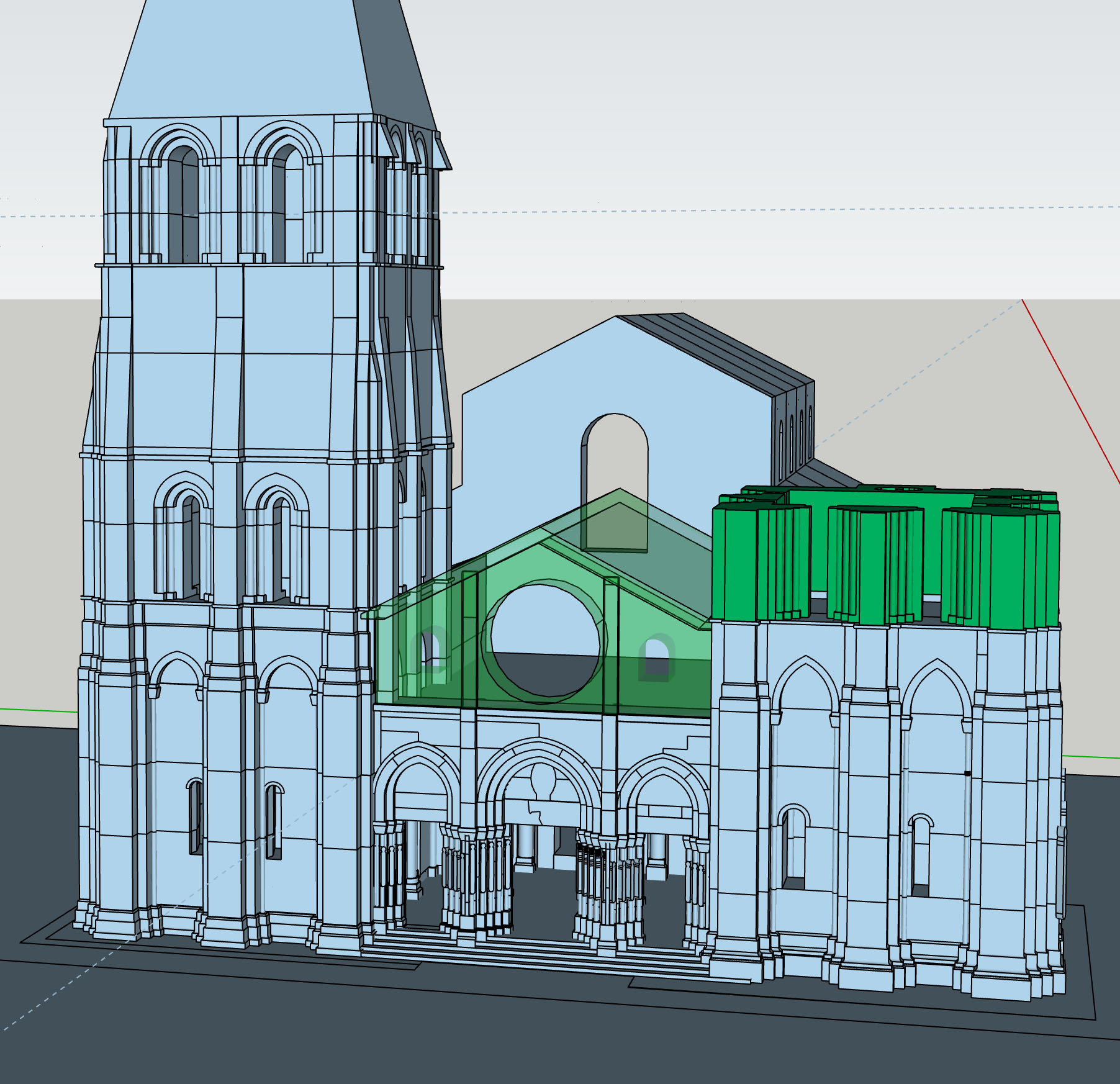

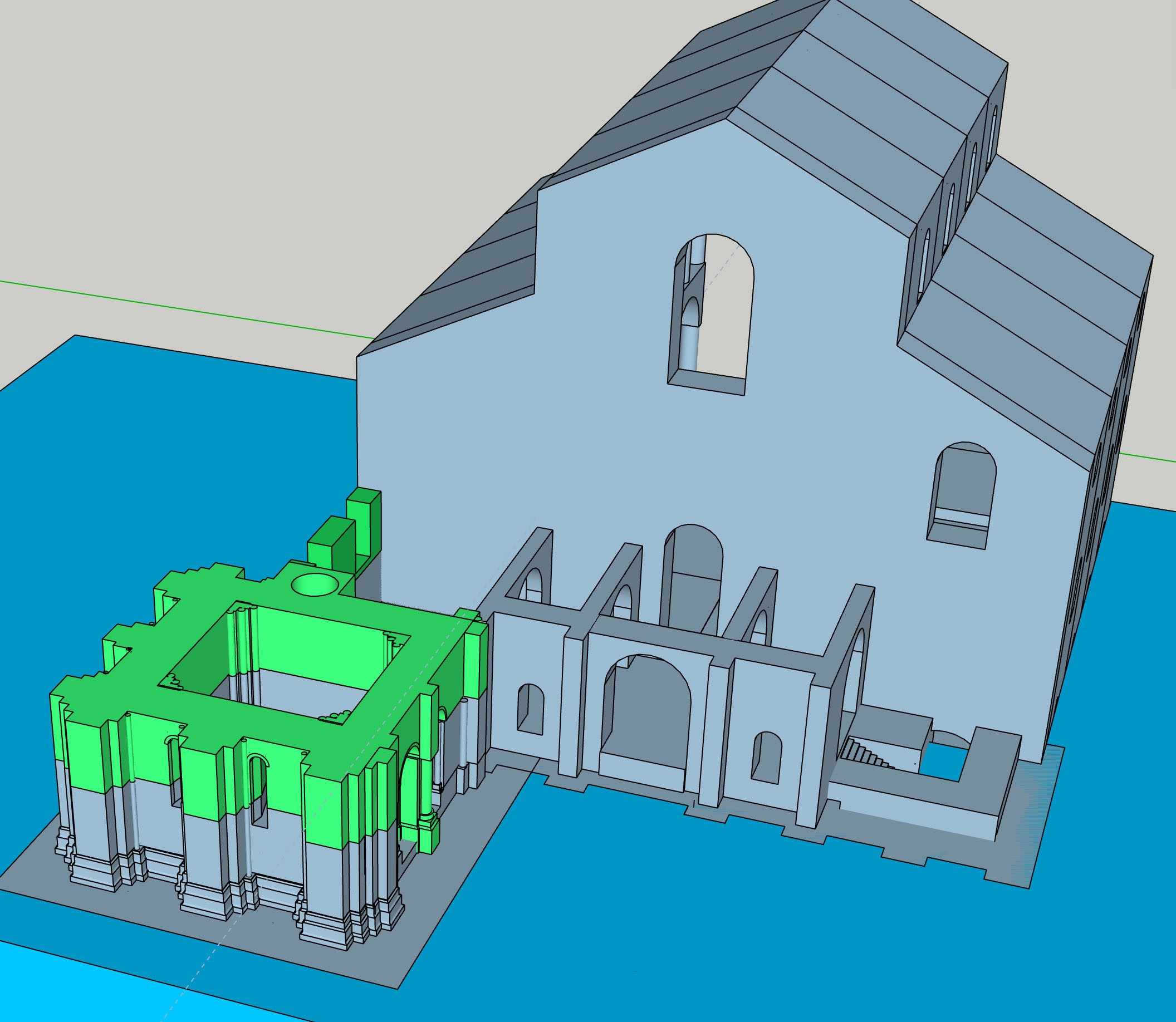

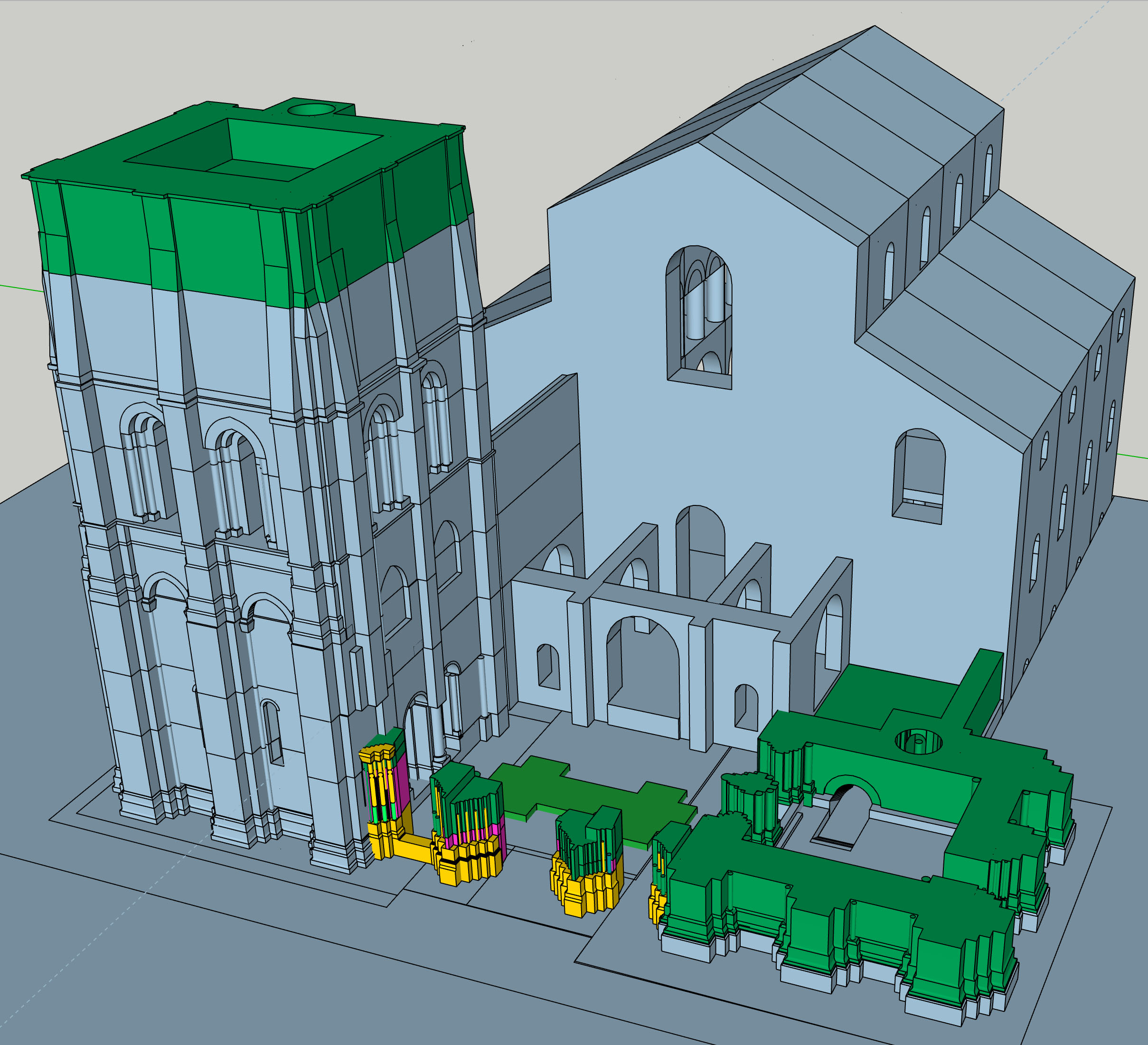

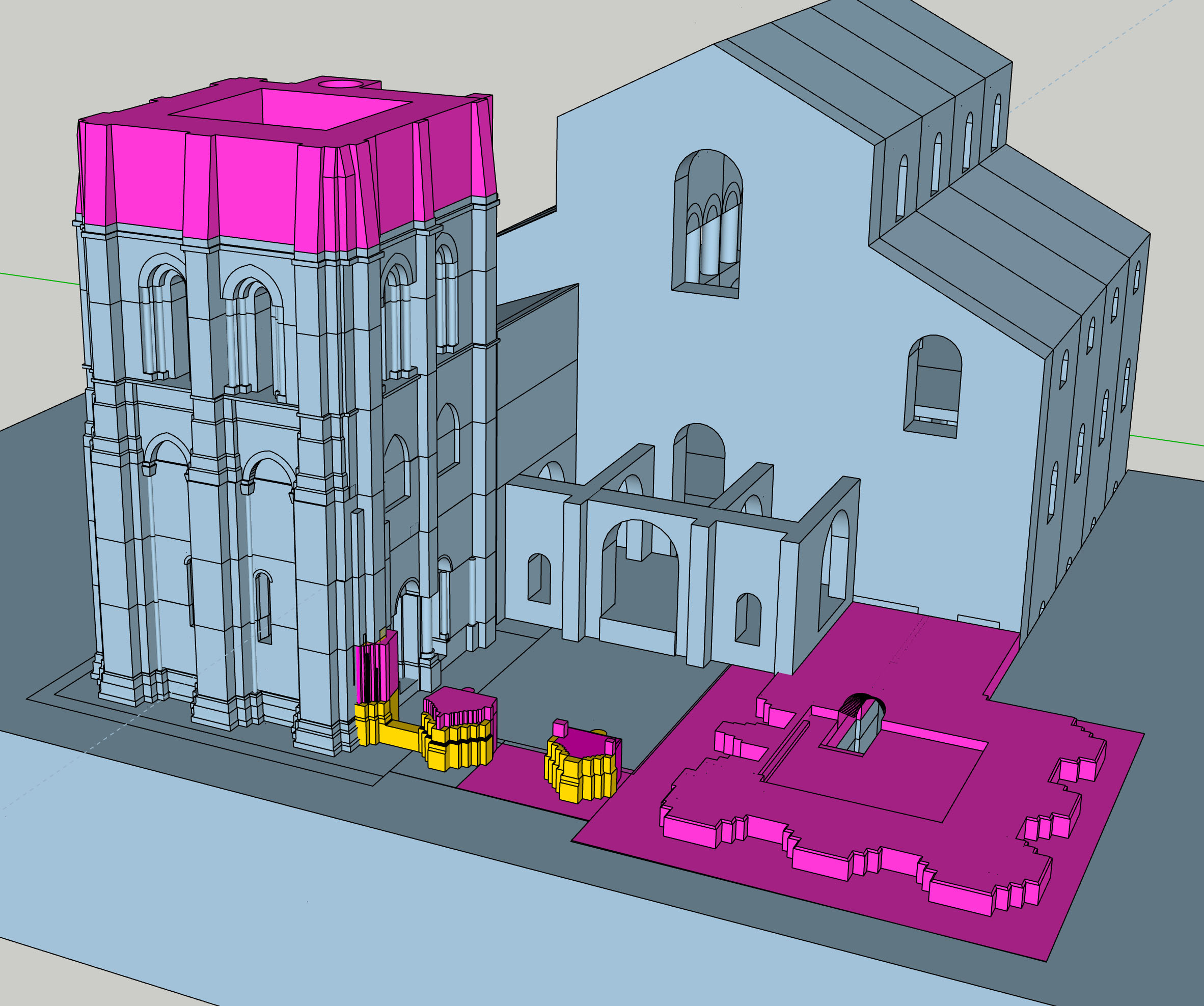

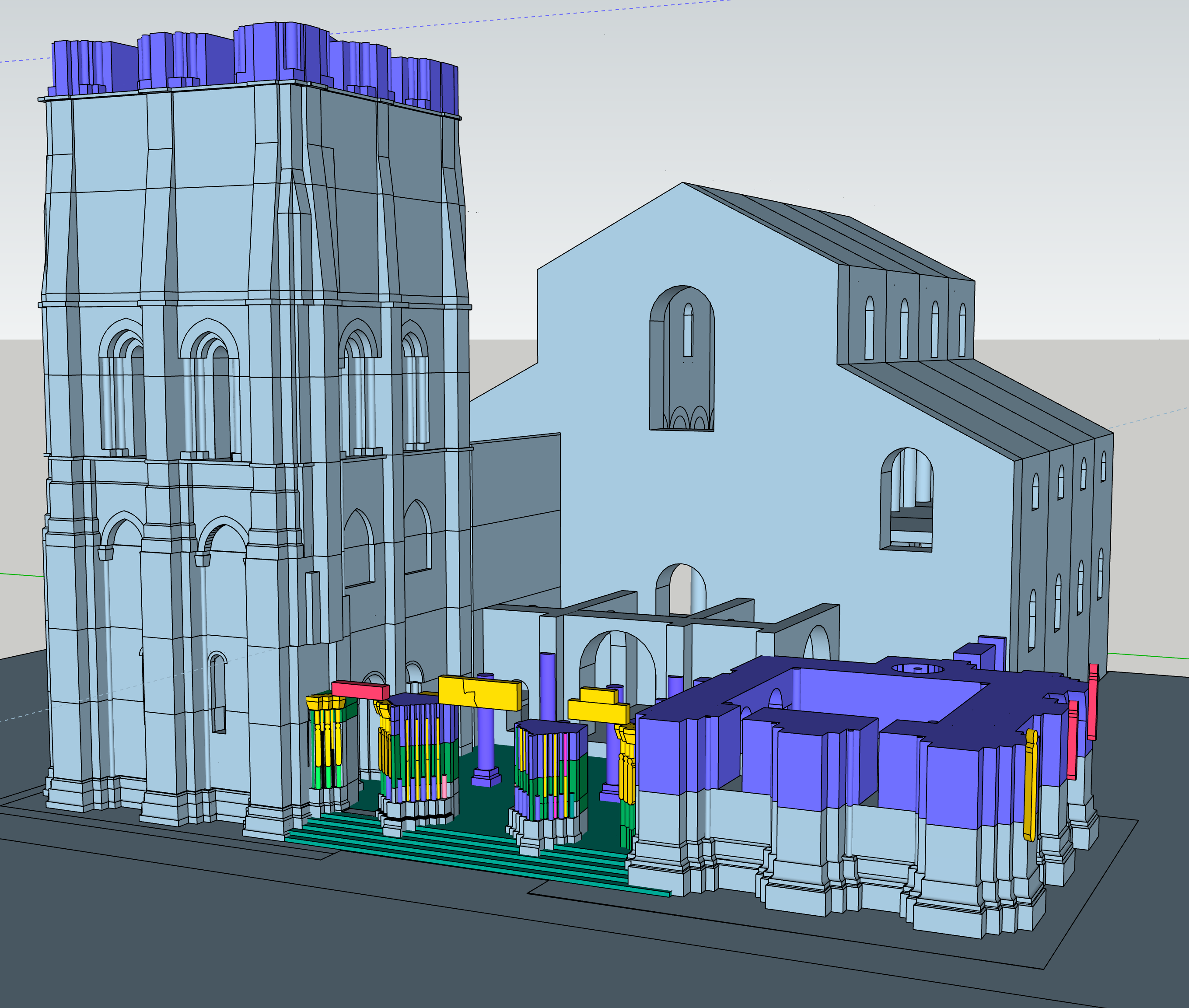

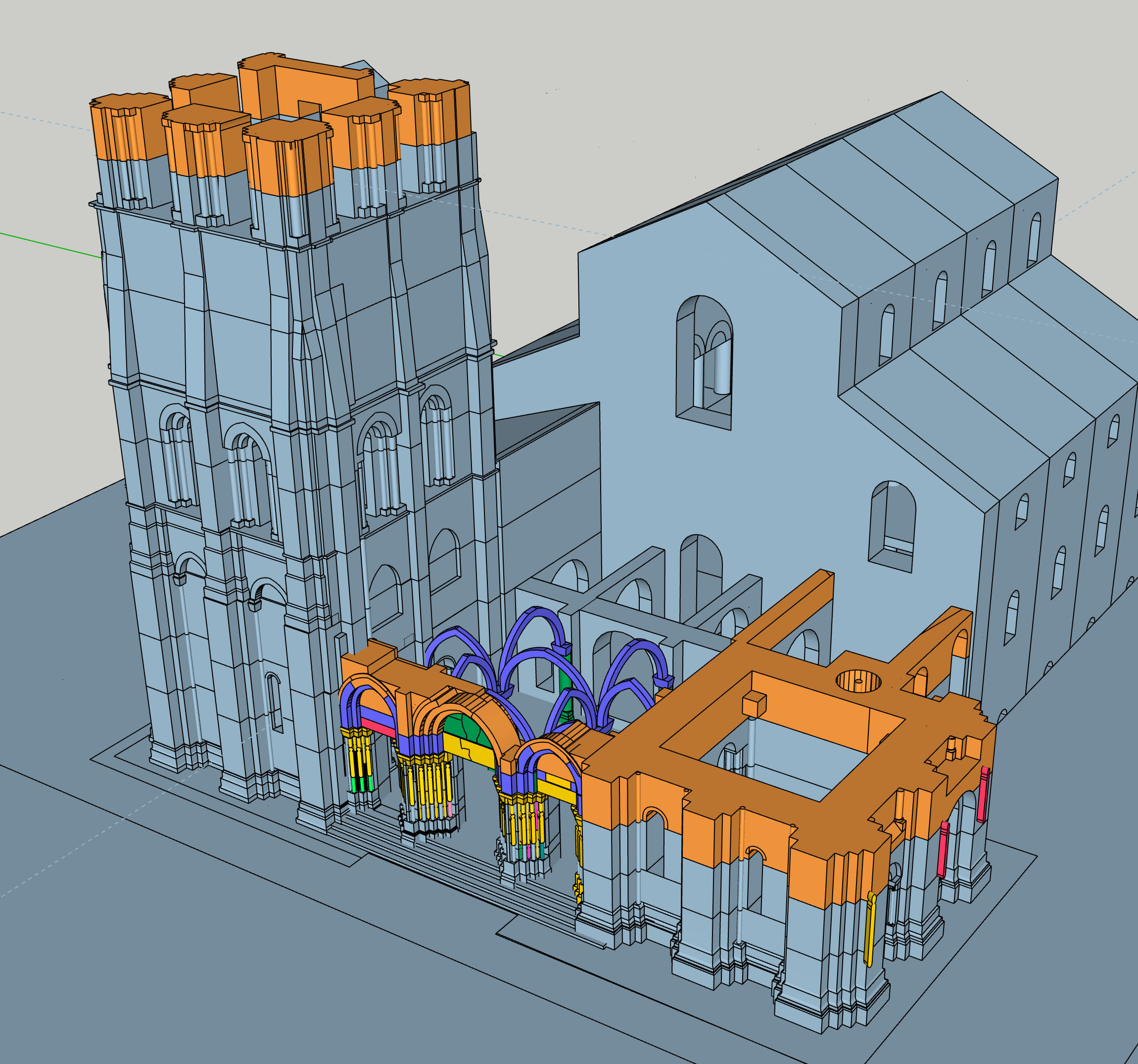

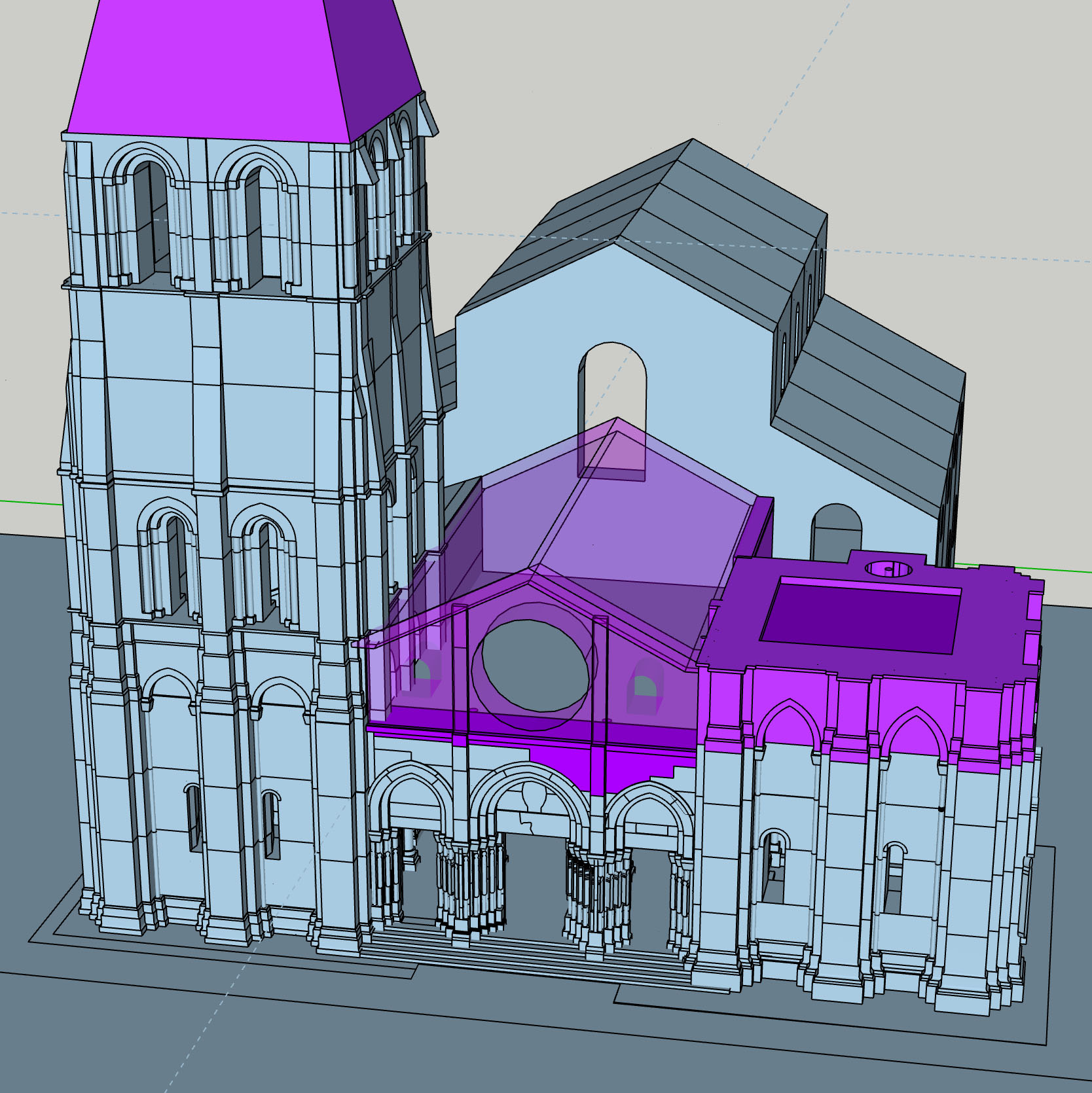

Models

created by Alain Menager with advice from John James

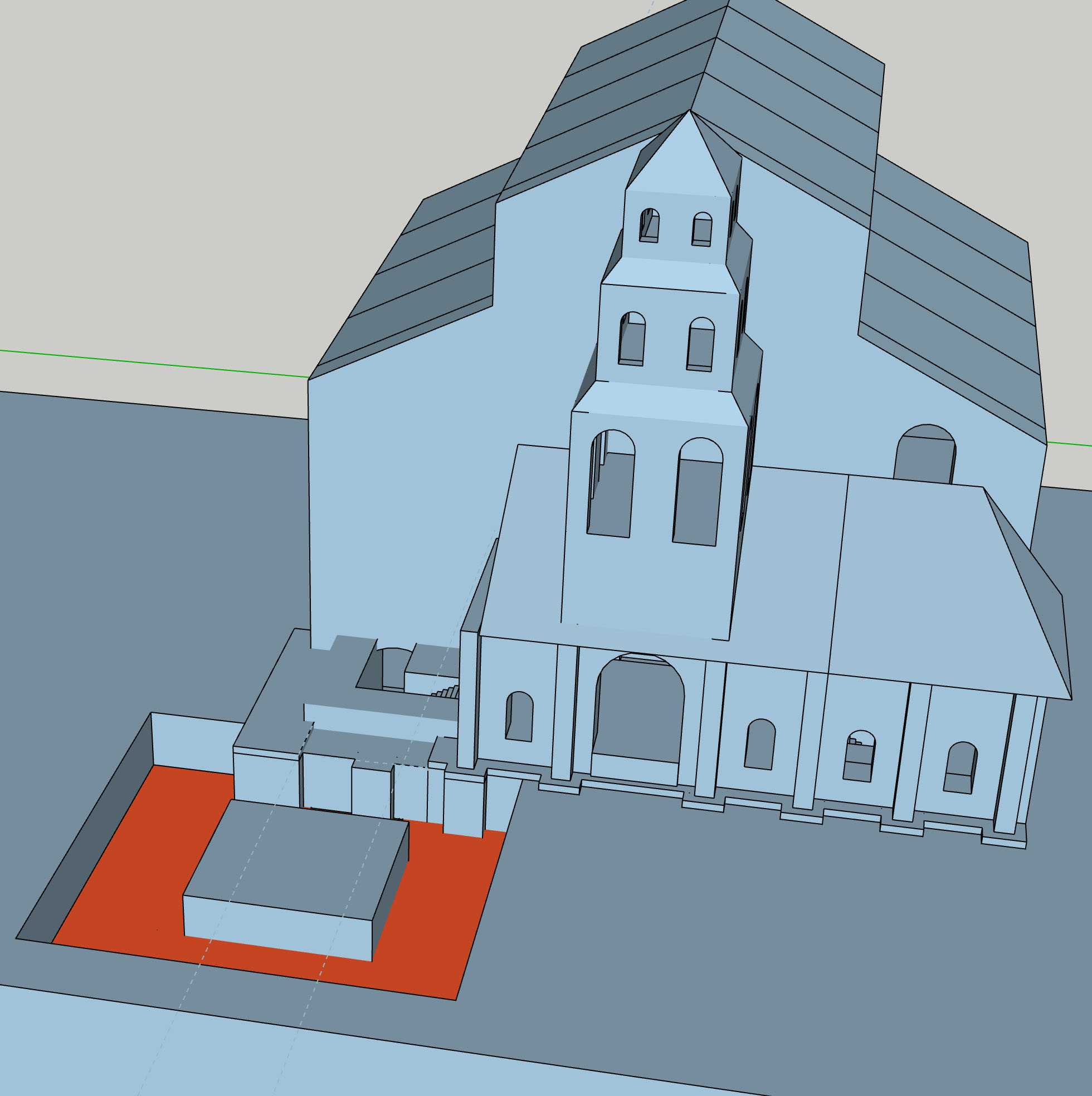

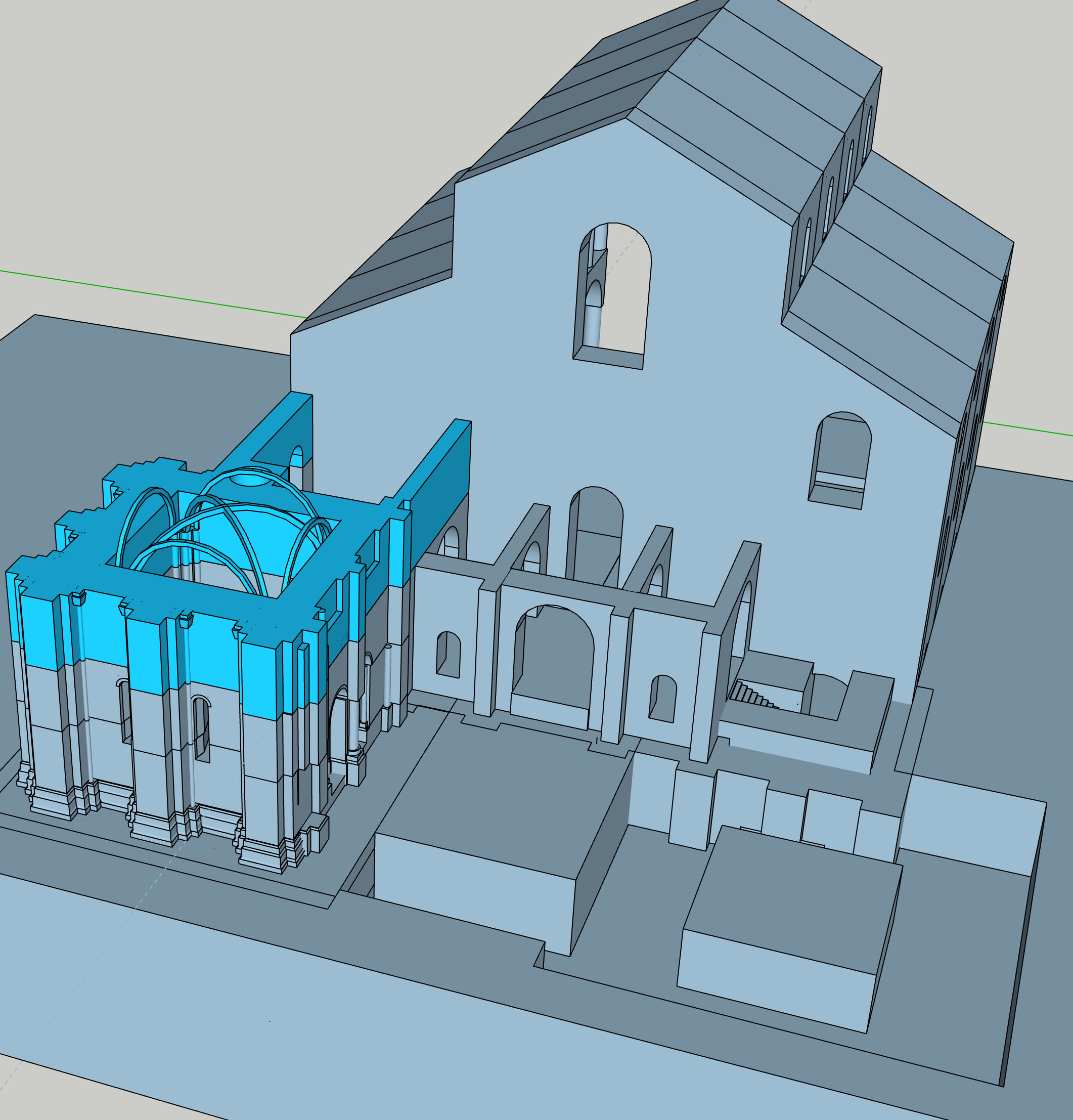

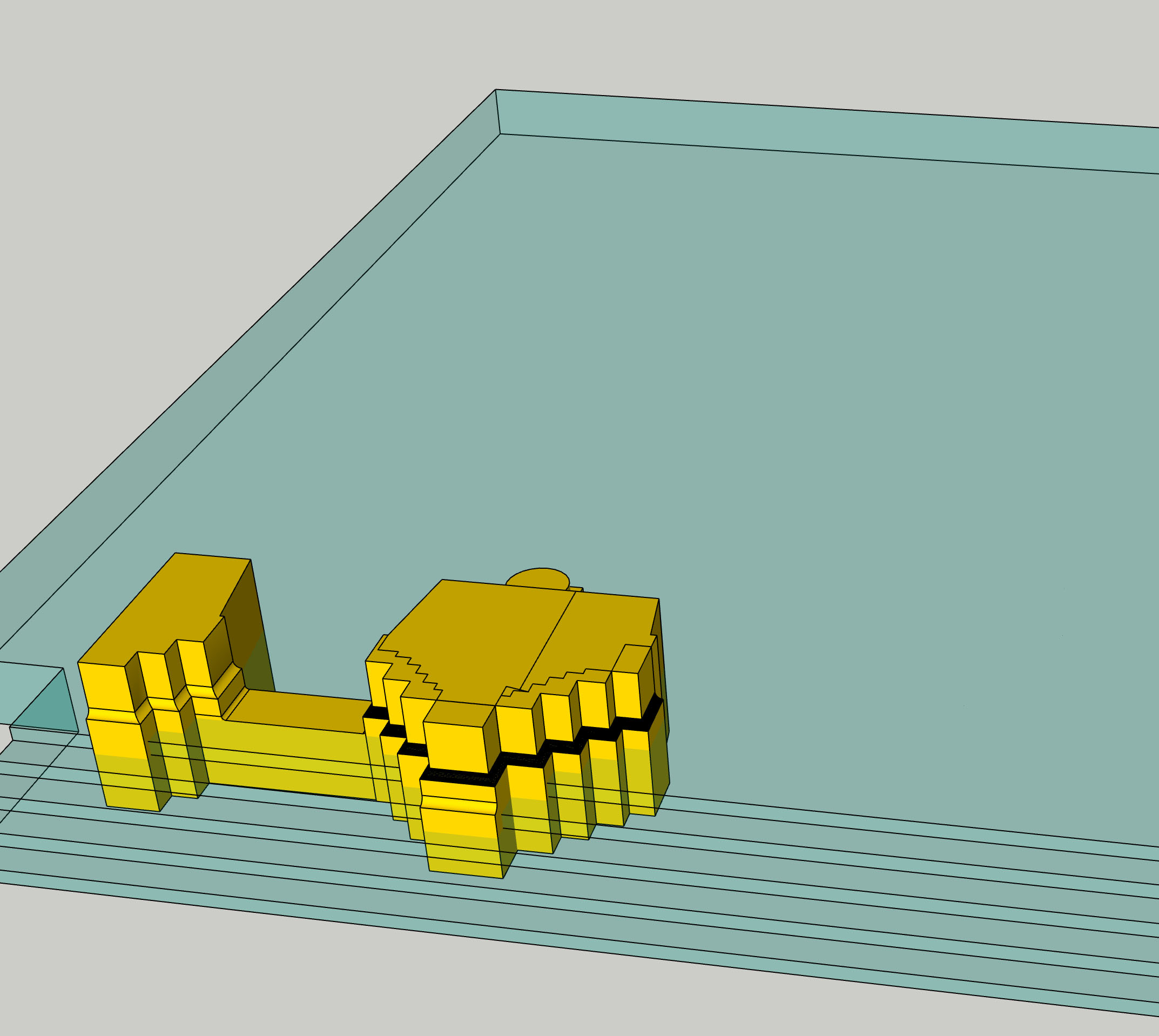

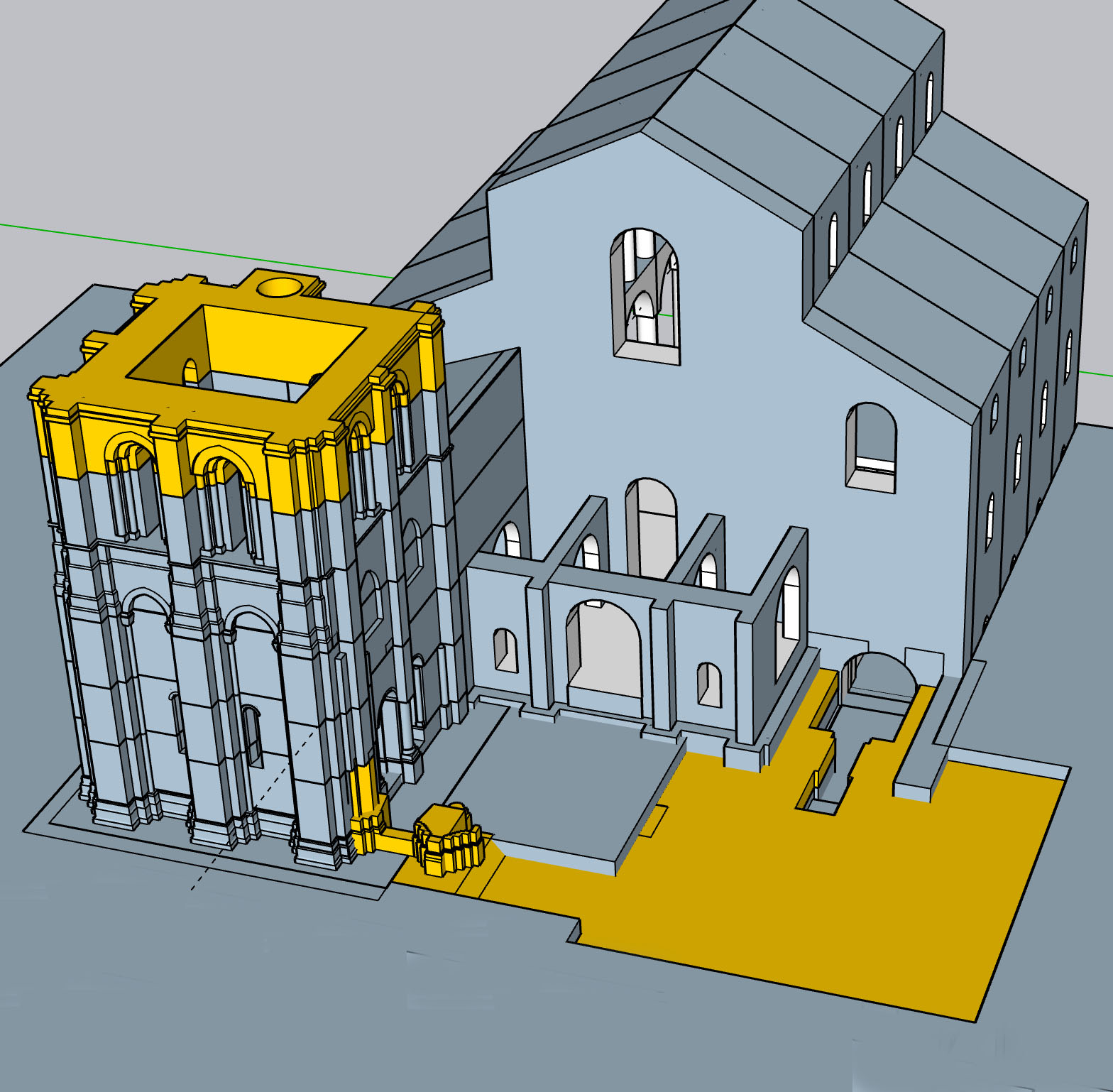

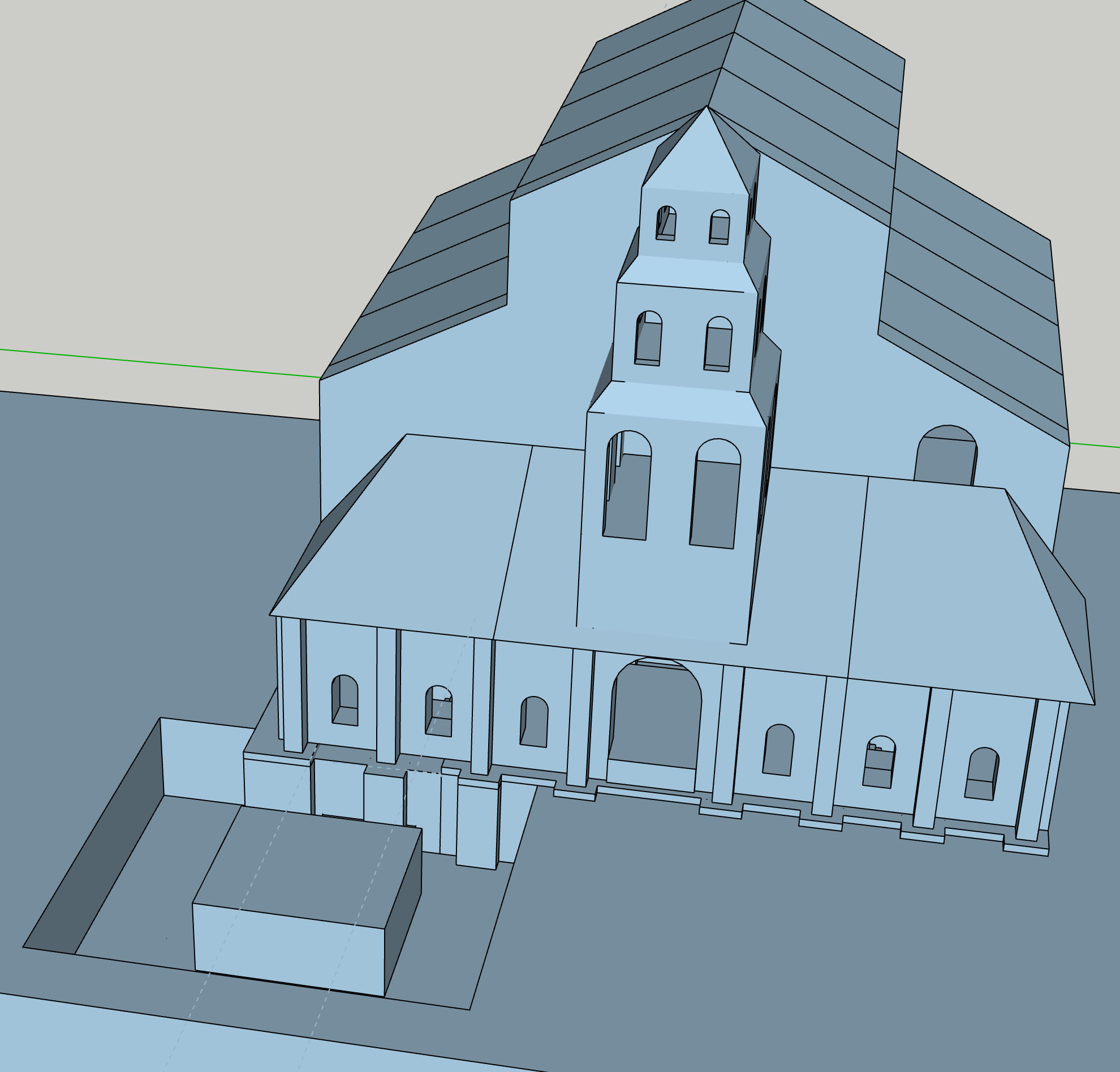

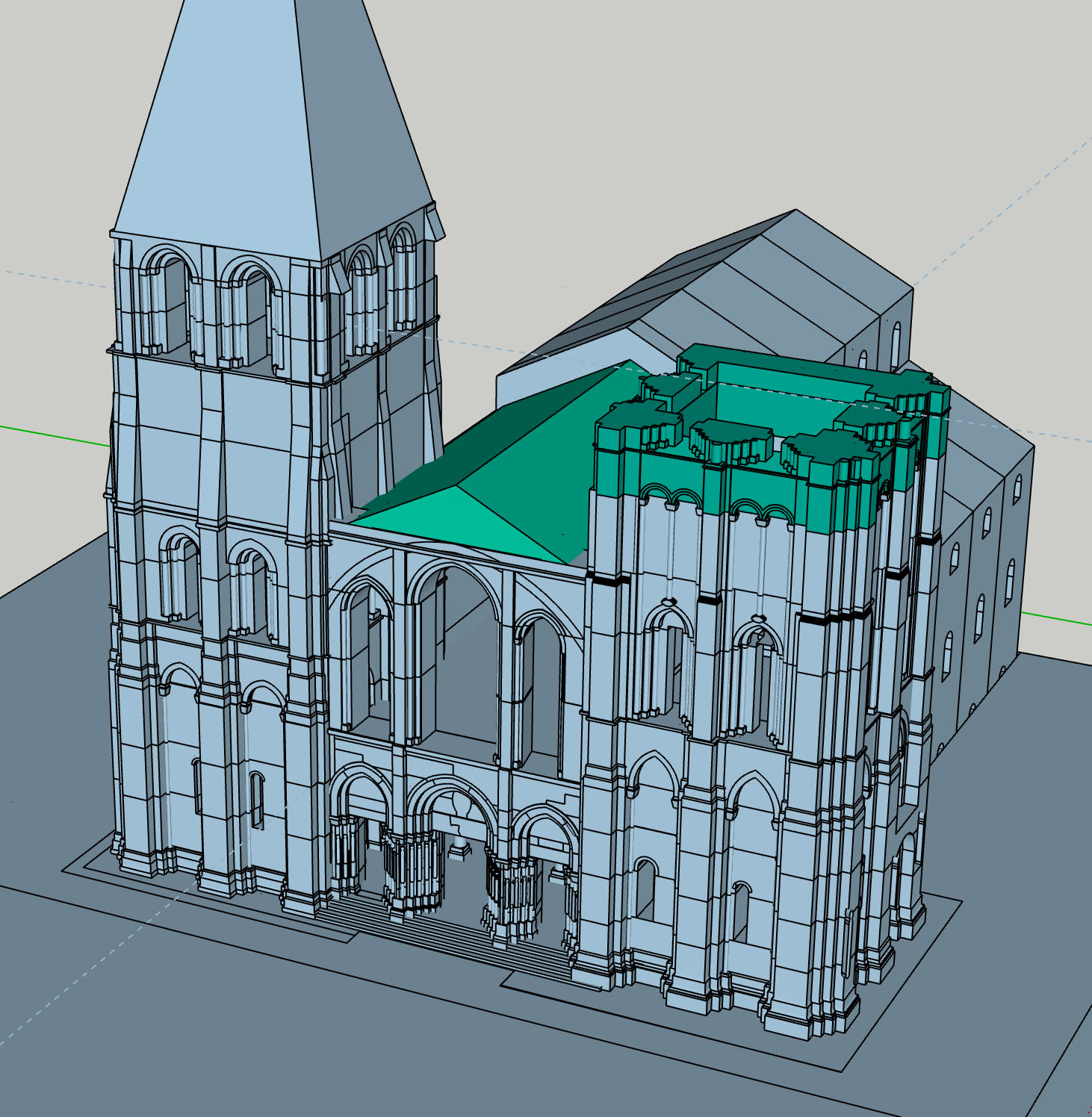

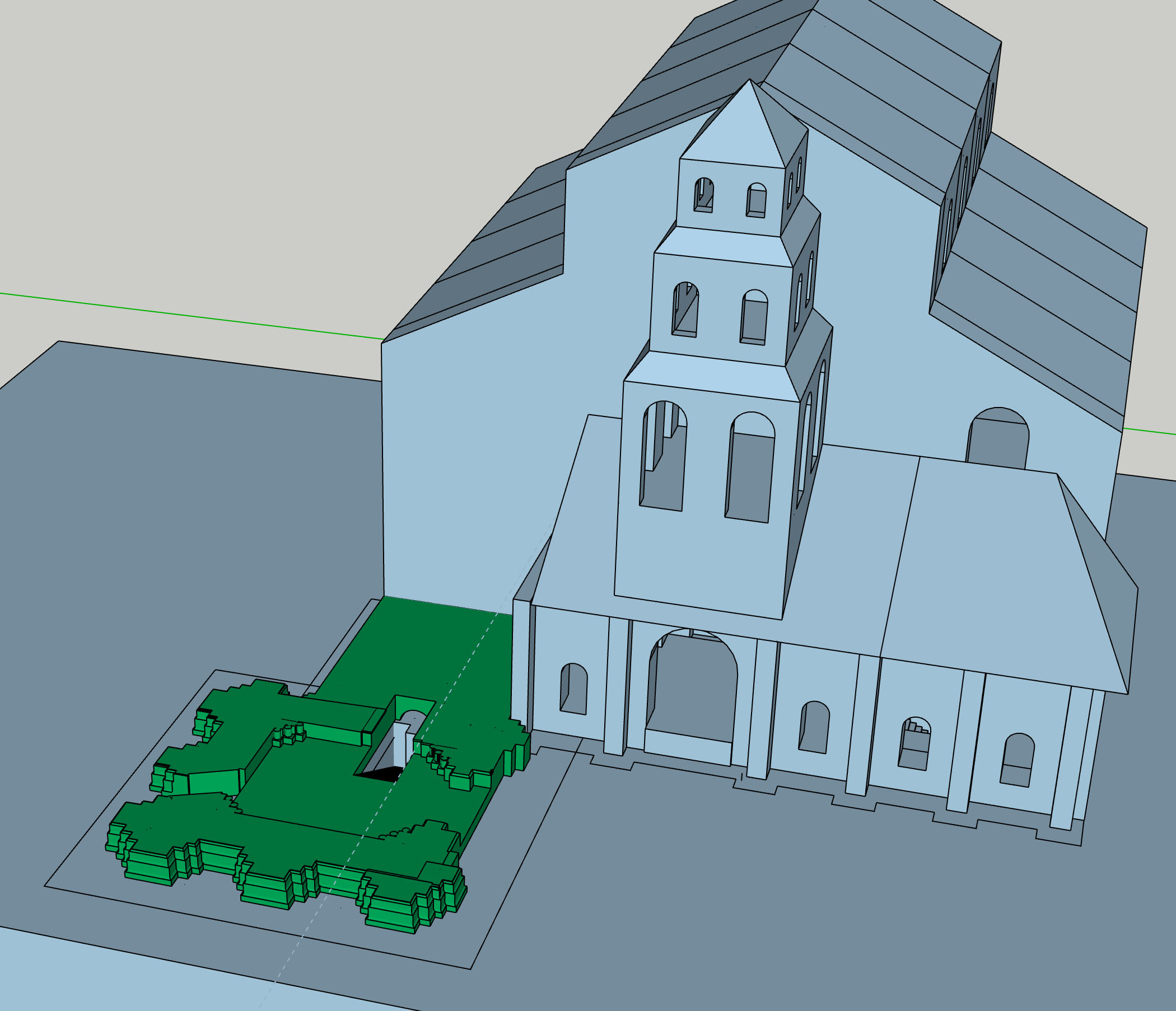

Phase: 1

WN footings

Phase: 2

n footings 1

Phase: 3

n footings 2

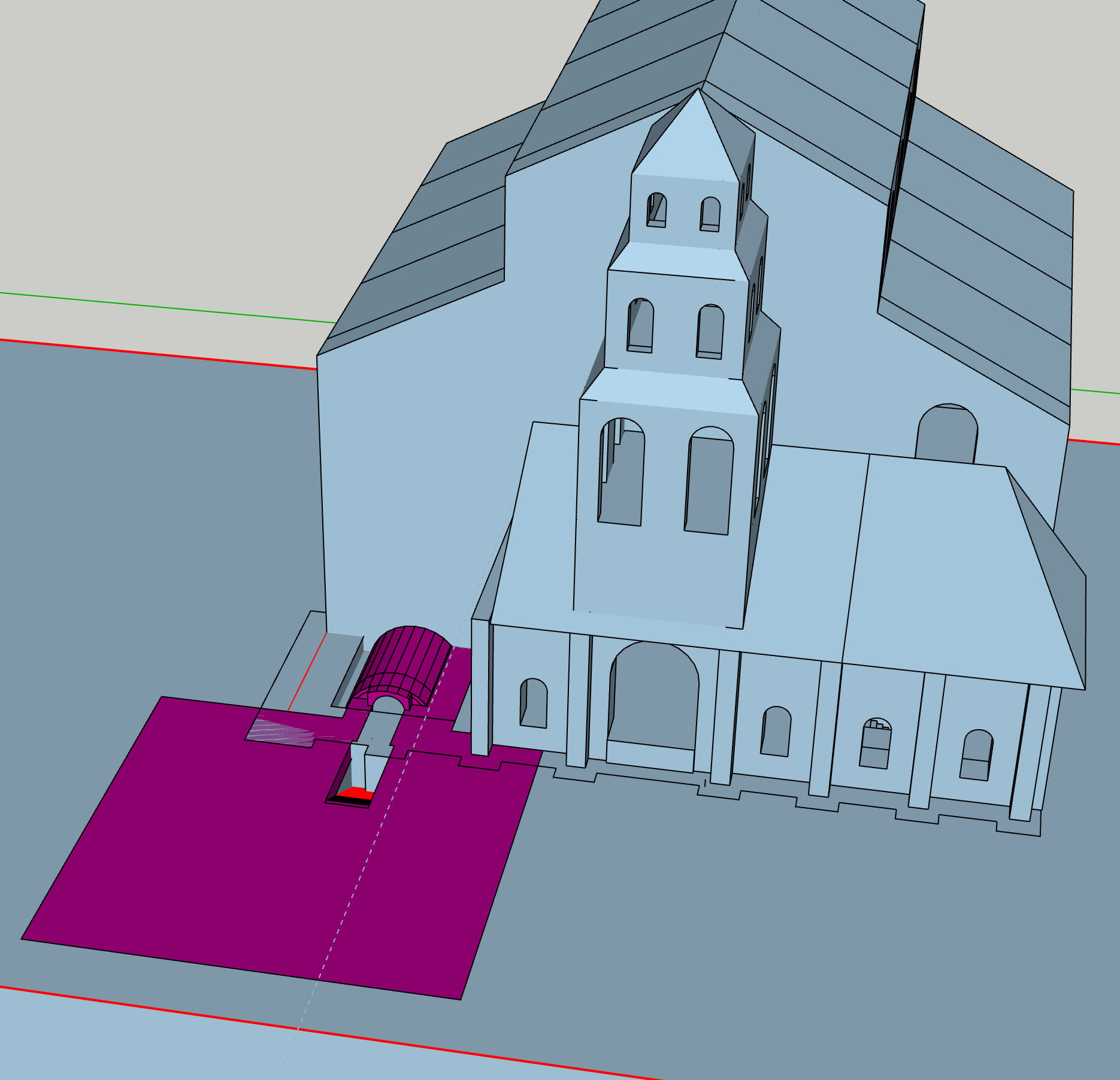

Phase: 4

n footings 3

Phase: 5

base WN tower

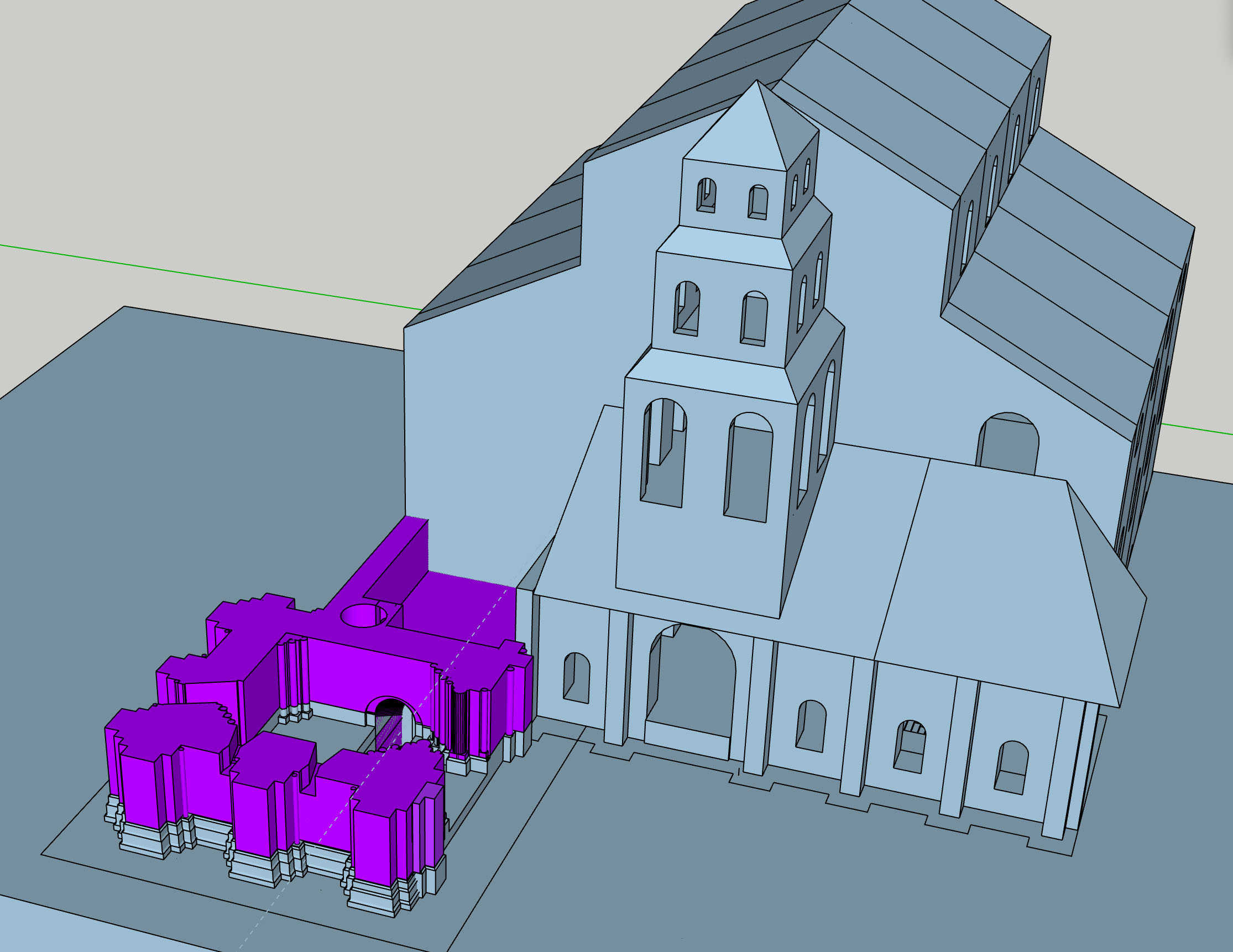

Phase: 6

N-s(a-) [camp-6]

Phase: 7

WN(a)

Phase: 8

WN(a+)

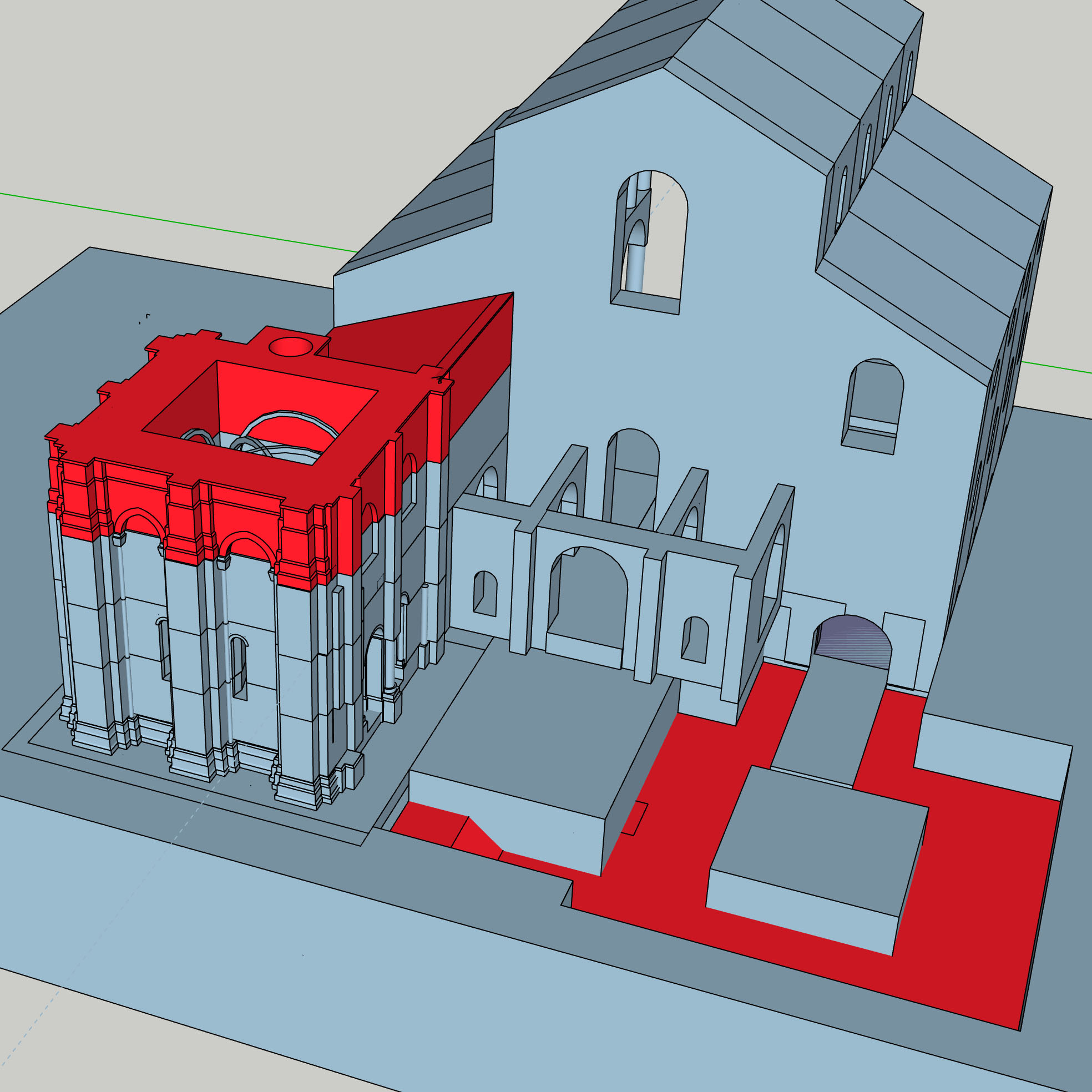

Phase: 9

WN(1) [Camp-9]

Phase: 10

portal earlier proposal

Phase: 11

WN(1) caps [Camp-11]

Phase: 12

portal carvers 1

Phase: 13

WN(1v), WS[b] [camp-12]

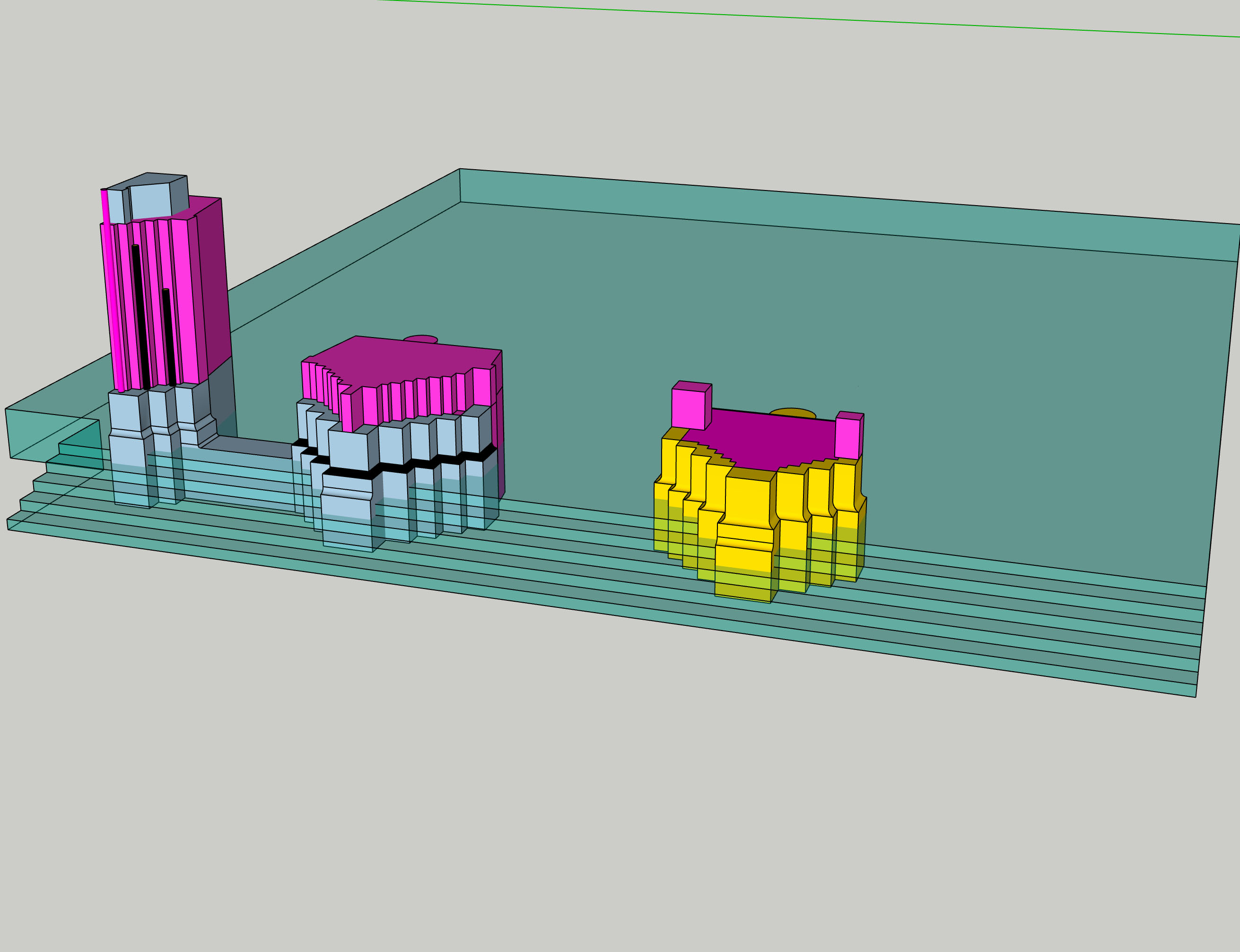

Phase: 14

portal stage 3 [camp-12]

Phase: 15

WN2(a) tower [13] H

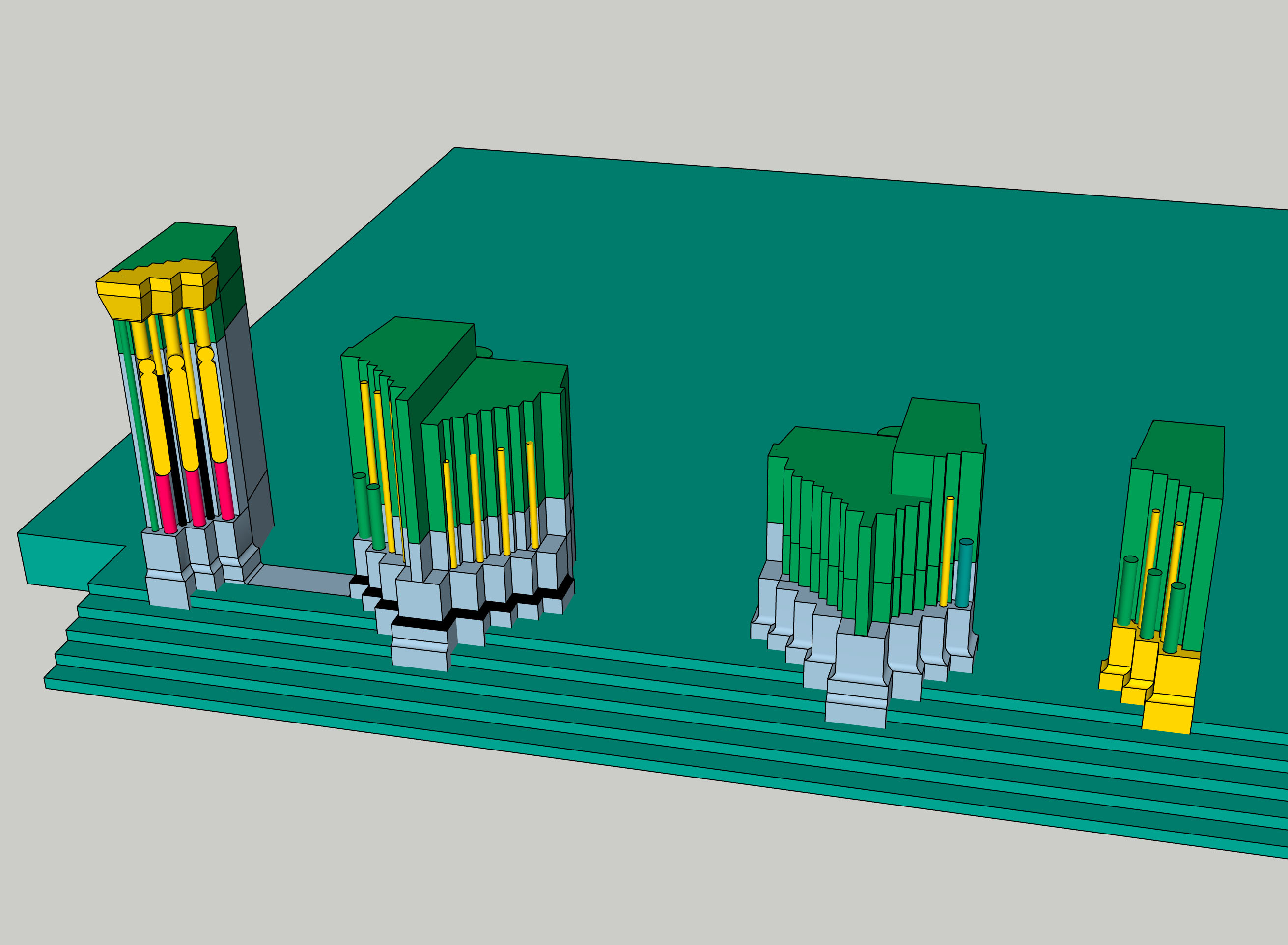

Phase: 16

portal stage 4 [13] H

Phase: 17

WN(2), WS(a) [camp-14] I

Phase: 19

WN, WS(a) [camp-15] J

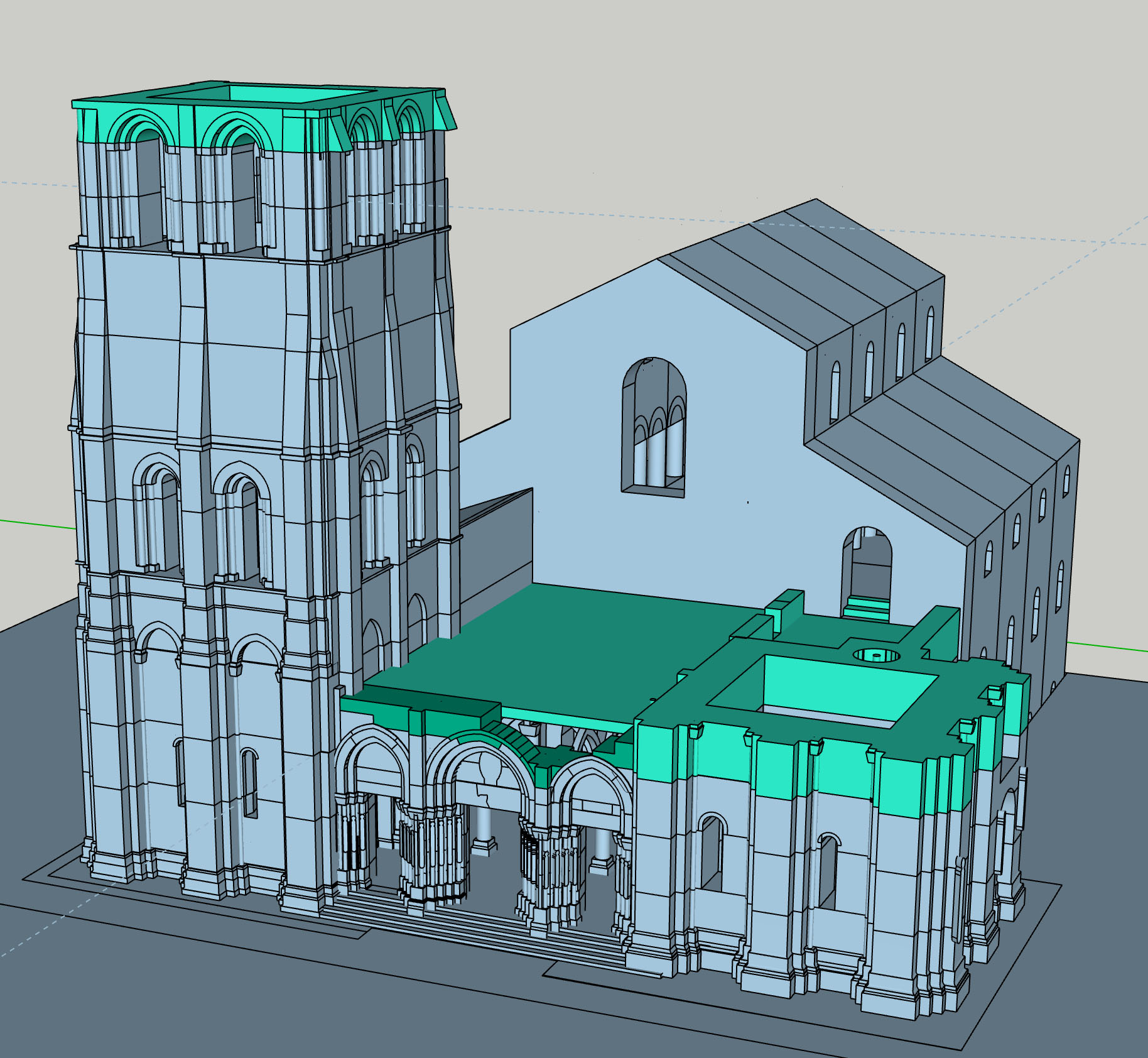

Phase: 20

WN(r), WS n'x(v) [K]

Phase: 21

WS(I) [campaign-6] L

Phase: 22

lancets [campaign-17] M

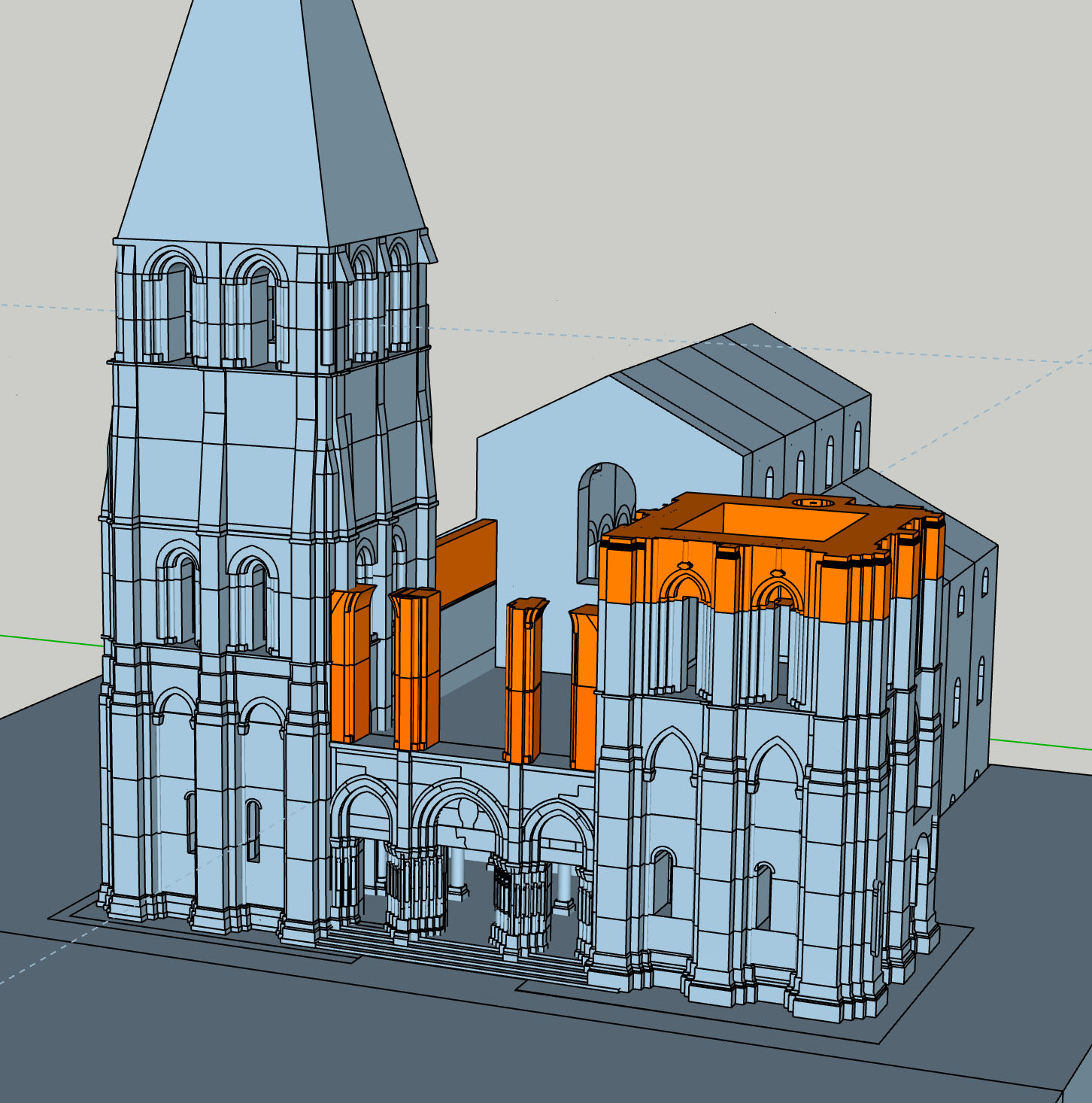

Phase: 23

WS(1+) [camp-19] N

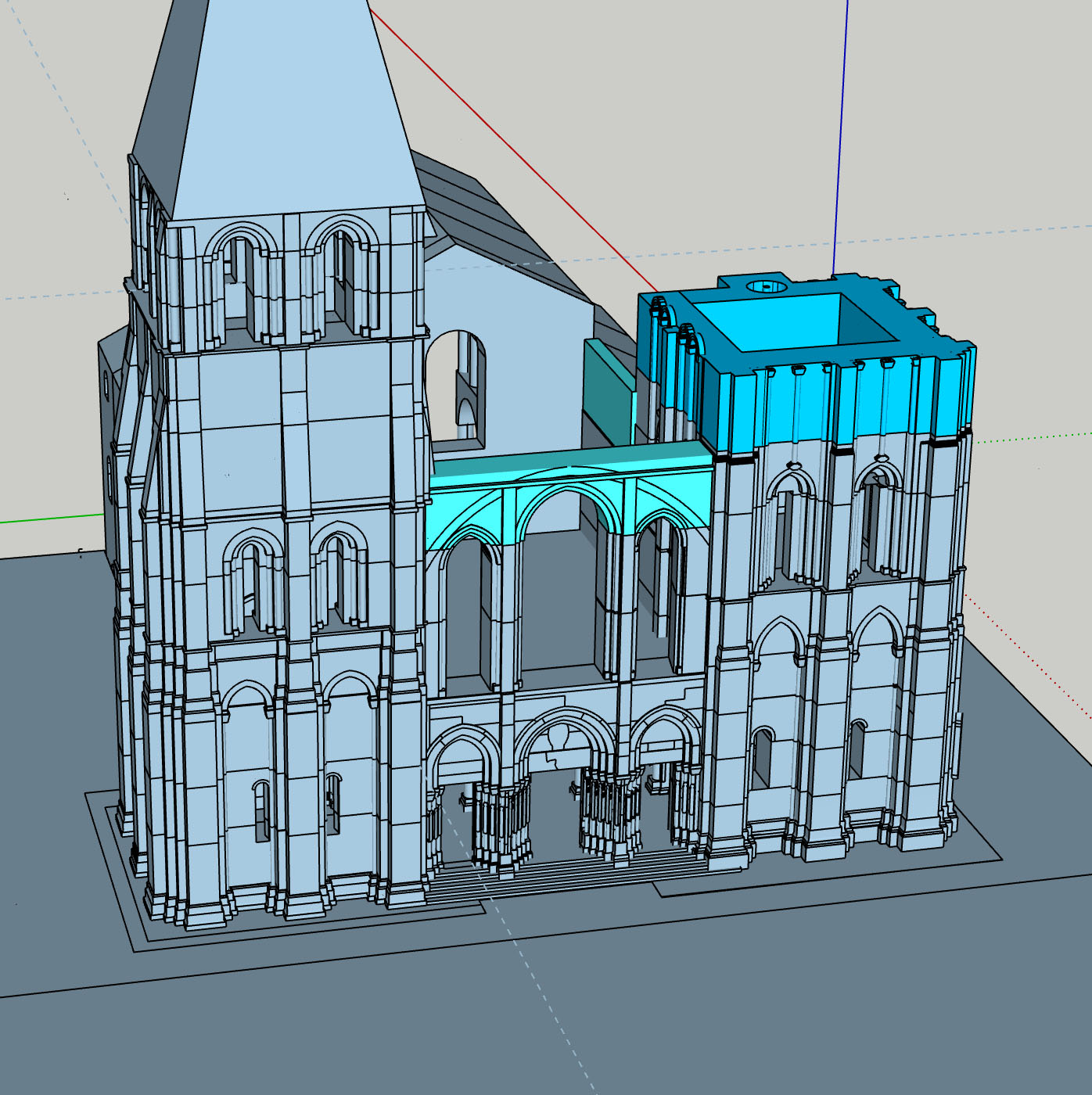

Phase: 24

WS(2} [camp-20] O

Phase: 25

level 2 caps, campaign O

Left click to rotate the model, scroll wheel to zoom and right click to pan

Loading model...
